The product has one-way and two-way contact structure, which is usually used in automatic control system, mobile communication equipment, connecting PLC or single-chip computer for current amplification drive.
FEATURES:
SAYOON MODEL IMPLICATION:
USES:
The product has one-way and two-way contact structure, which is usually used in automatic control system, mobile communication equipment, connecting PLC or single-chip computer for current amplification drive.
TECHNICAL PARAMETERS: (Version 1.40)
三佑產品型號 | SA | |||
Type | SA1-810DD | SA1-2210DA | ||
Control mode | DC Controlled DC | DC Controlled AC | ||
Input | Input control voltage | 3-32V | 3-32V | |
| Input Control Current | < 10mA Built-in constant current circuit | |||
| Input on-off voltage | 0N>2.6V OFF<2V | 0N>2.6V OFF<2V | ||
Output
| Output rated voltage | 5-80V DC | 24-280V AC | |
| Output rated current | 4A | |||
| Output maximum load current | 10A | |||
| Output Design Current of Internal Parts | 30A | 18A | ||
| Output Driving Mode | Electromagnetic | zero-cross diaphragm | ||
| Output on-state pressure drop | ≤1.2 DC | ≤1.2 DC | ||
| Output fault leakage | ≤1mA | |||
| Output isolation voltage | ≥2500V AC | |||
| Output Absorption Voltage | Voltage Sensitive | RC Absorption | ||
| Output on-off time | 2ms | 2ms | ||
Action status indication | LED red | |||
Note: The size of the output voltage and current can be selected. Due to the different user environment, the required performance is different. In order to better improve the overall performance of the product, Sanyou may adjust the relay parameters accordingly. The above parameters are for reference only. For details, please refer to the Sanyou DC Contactor Selection Guide and the Reliability Manual.

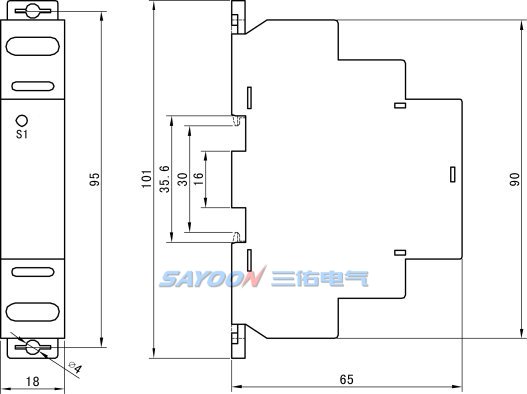

INSTALLATION DIAGRAM:

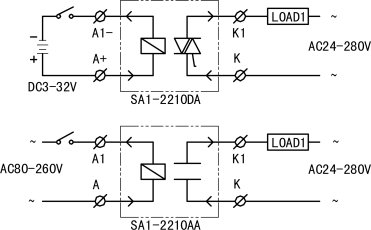

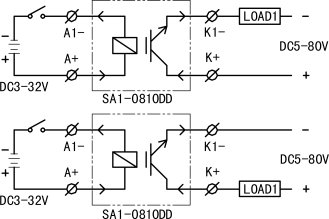

WIRING DIAGRAM:

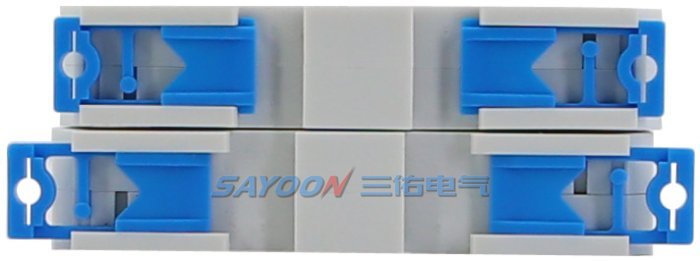

PLUG TYPE:
 |
MECHANICAL ABILITY and USE of the ENVIRONMENT:
| Input/output outlet M2.5 tightening force distance(N.m) | 0.4 appropriate |
| Stripping length | 6-7mm |
| Ambient temperature | -30~+60℃ |
| Relative humidity | +20℃ 98% |
| Vibration freq. atthe fixed position | 3G, 1～50Hz amplitude 0.5mm |
| Concussion | (60～100) time/minute、acceleration≤4g |
| Altitude | 2000m |
| Installation direction | Random |
| International Protection | IP20 |

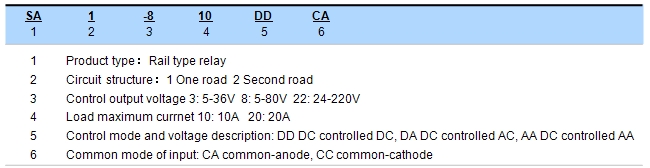

ORDER INSTRUCTION:
SAYOON Product Type | SA |
| Small package QTY. | 6PCS |
| Package QTY. | 180PCS |
| Mounting bracket type | 35mm Guide rail, screw |

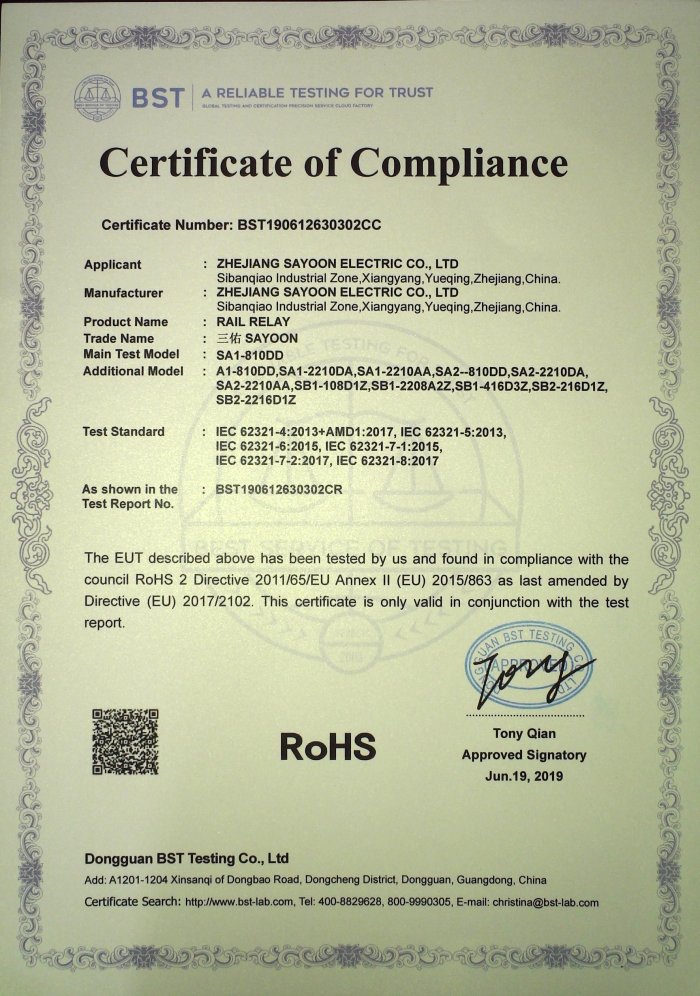

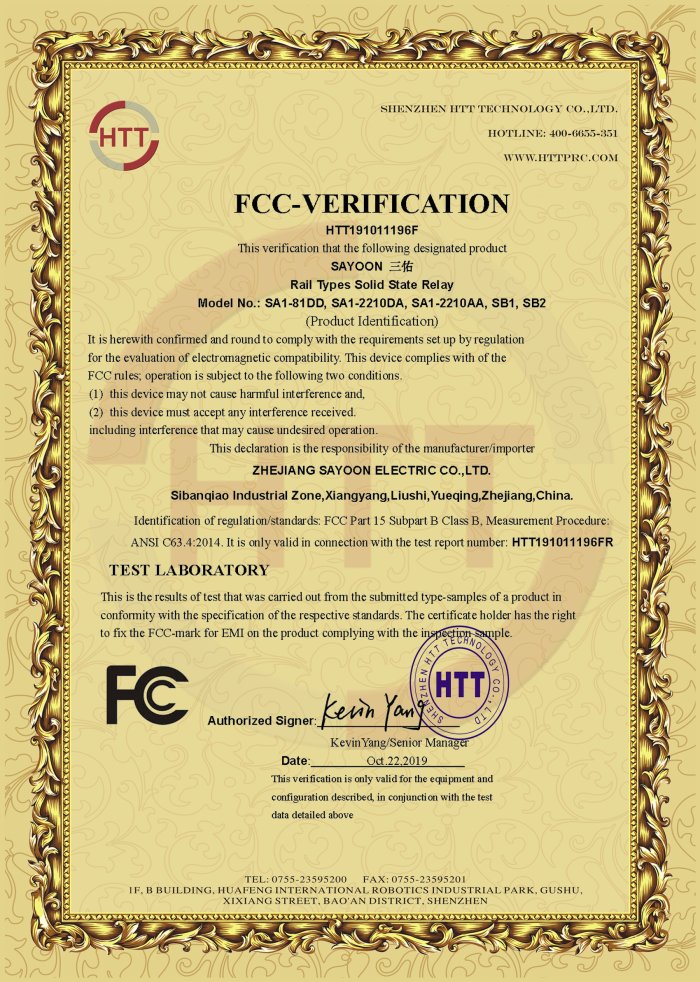

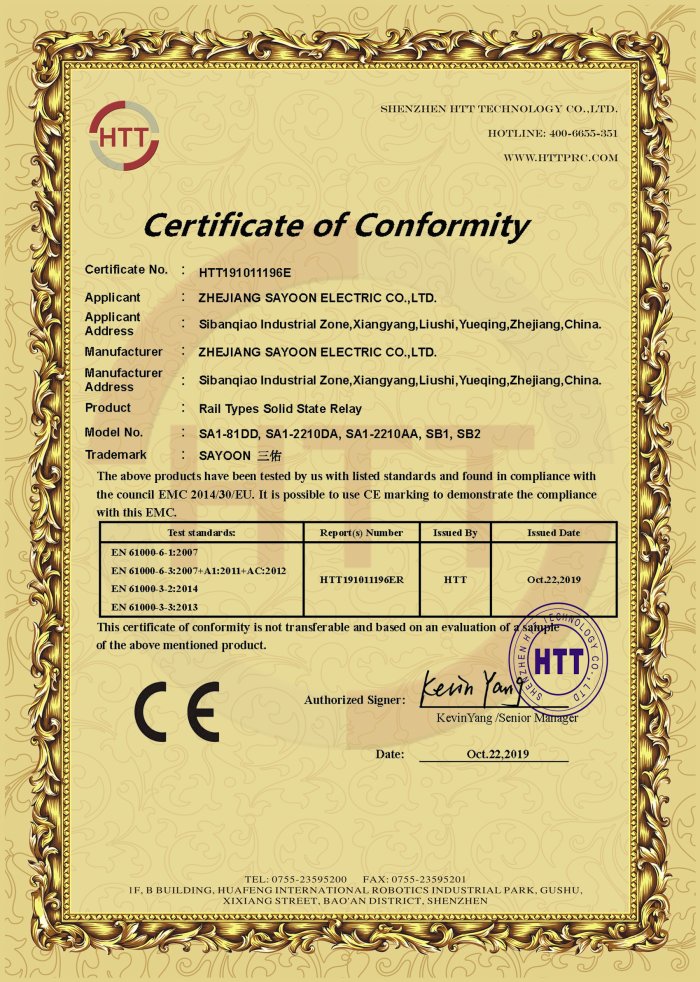

certification：

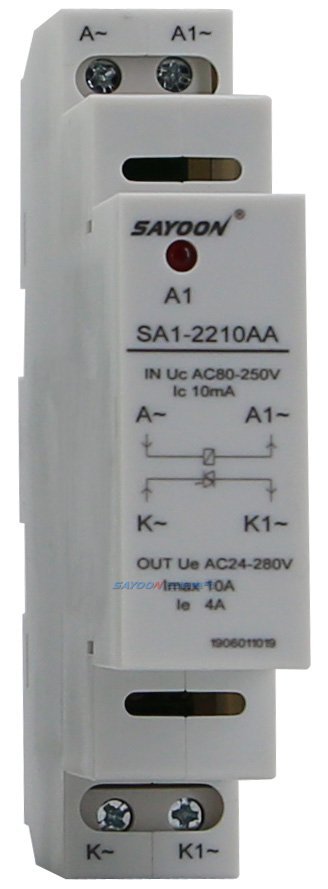

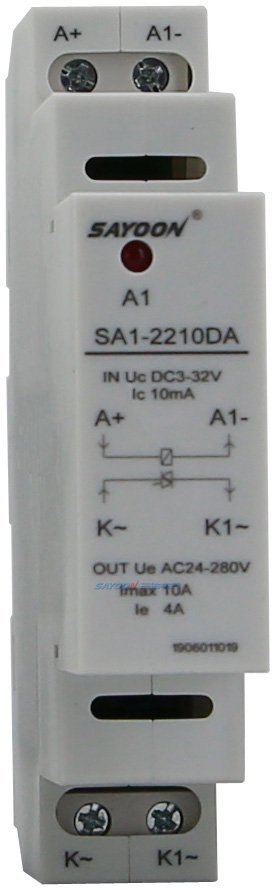

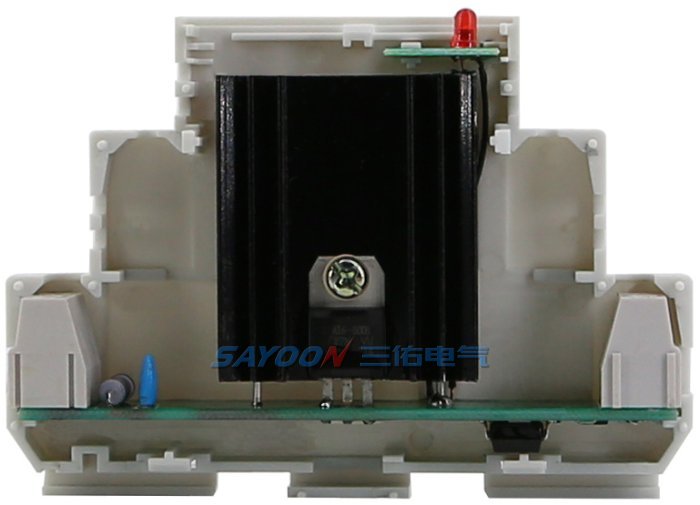

PRODUCT PICTURE:
DOWNLOAD DATA:
| No. | Download |
| 1 |  SAdatasheet |
| 2 | DC Contactor Technical Applications Form for PDF/ DC Contactor Technical Applications Form for XLS |
| 3 | Mini PDF Reader1 for WinXP/ Mini PDF Reader1 for Win7 / Adobe Reader |
Tips: if you want to understand the technical details of parameters more SAYOON SA Rail Relay, other SAYOON or the product of information, please visit SAYOON electric official website www.makejoy.com.cn/en, or send mail to [email protected] , ZHEJIANG SAYOON ELECTRIC CO., LTD. will welcome your arrival.
